用于匹配夾層線或者單機使用；

進片段有一道預噴淋，減少帶入主機的污染物，減少玻璃粉對設備的腐蝕，延長設備使用壽命；

PLC控制系統，配有編碼器等傳感器，可通過設置相應的厚度和速度，控制系統可自動控制；

水路部分有多重過濾，盡可能的保持噴淋到玻璃表面的水的潔凈度；

噴淋管安裝有大量噴頭，噴頭型號為9515，噴射出的水為扇形，可有效覆蓋全部玻璃，無死角，且噴頭口較大，不易被玻璃粉及其他污染物堵塞；

毛刷電機使用減速機，輸出扭矩大，避免小皮帶輪帶動大皮帶輪，減少傳動皮帶的打滑和磨損，延長皮帶使用壽命；

毛刷材質為尼龍絲材質，轉速500r/min，能更有效的清潔玻璃表面污染物；

一道上毛刷材質為尼龍絲0.08mm的，清洗LOW-E玻璃時使用且不劃傷膜層；

配備有兩對風刀，風刀使用鋁合金一次成型，變形小，刀口均勻誤差小，保證刀口間隙誤差小于±0.2mm，更好的吹干玻璃；

風機箱以及電柜均安裝在設備上架上方，能更有效的節約廠房空間；

一道風刀配備有加熱器，在冬天或者潮濕天氣開啟，有助于吹干玻璃；

升降行程為0-300mm，方便保養和維修；

水箱底部安裝有拖輪，方便拖動清理水箱；

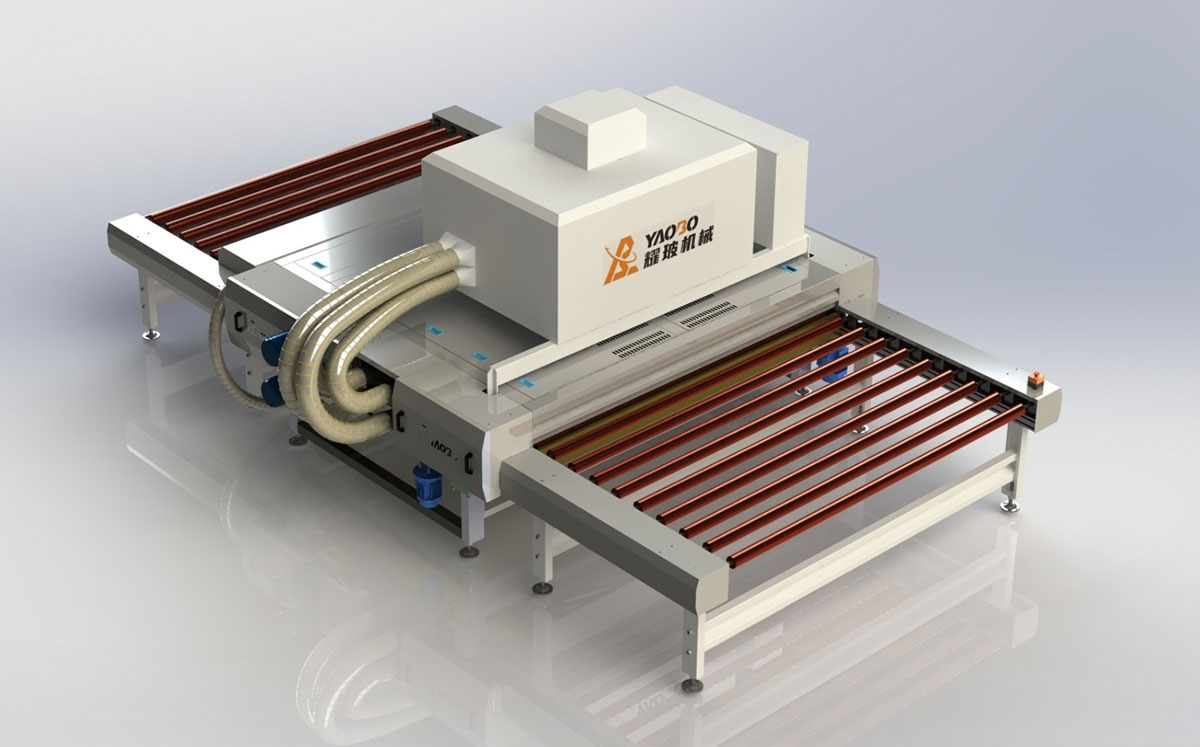

Used for matching laminated glass line or single machine use;

There is a pair of water pre-spray in the entering section to reduce the pollutants brought into the main machine, reduce the corrosion of glass powder on the equipment, and extend the service life of the equipment;

PLC control system, equipped with encoders and other sensors, can automatically control the system by setting corresponding thickness and speed;

The water circuit has multiple filters to keep the water sprayed on the glass surface as clean as possible; The spray pipe is equipped with many nozzles, with a nozzle model of 9515, and the sprayed water is fan-shaped and can effectively cover the entire glass without dead corners. In addition, the nozzle opening is large and not easily blocked by glass powder or other pollutants;

The brush motor uses a reducer with high output torque to avoid the small pulley driving the large pulley, reducing belt slip and wear, and prolonging belt service life.

 The brush material is made of nylon wire and its rotation speed is 500r/min, which can effectively clean the surface pollutants of glass; The last set of brushes is made of 0.08mm nylon wire to avoid scratching the film layer when cleaning LOW-E glass

There are two sets of air knives, and they are made of aluminum alloy in one piece, with small deformation, uniform blade edge and small error to ensure that the blade spacing error is less than ±0.2mm, which is better for blowing the glass dry;

The fan box and electric cabinet are installed above the equipment rack to effectively save factory space;

The last set of air knives is equipped with a heater, which can be turned on in winter or humid weather to help dry the glass;

The lifting stroke is 0-300mm, which is convenient for maintenance and repair;

The bottom of the water tank is installed with four wheels, which is convenient for dragging and cleaning the water tank.
